Preparation of specimens for the single fiber pull out test
Technical Data
- Development of the equipment in cooperation with the Research Technology of IPF
- computer controlled embedding process
- melting temperatures up to 400 °C
- heating rates up to 10 K/s
- optional working under inert gas atmosphere

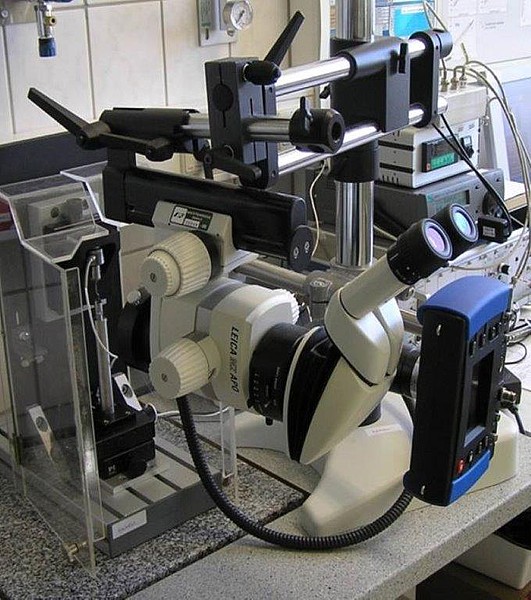

Single Fiber Pull Out Test
Technical data
- typical pull-out velocity: 10 nm/s
- displacement resolution: 1 nm, force resolution: 1 mN
- results of measurement: force-displacement curve, interfacial shear strength, critical energy release rate of the interphase [..]
Contact
Dr.-Ing. Christina Scheffler
Phone: +49 (0)351 4658 373
Fax: +49 (0)351 4658 362
