Fluorescence Microscopy

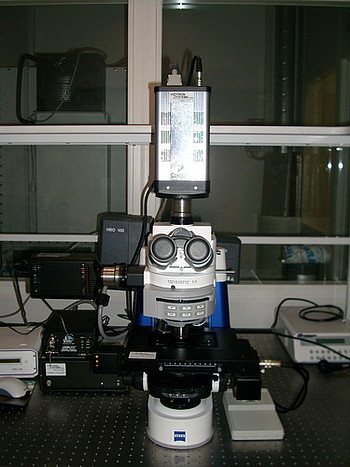

Fluorescence microscopy in reflection mode as well as standard light microscopy can be done at our microscope Axio Imager.A1m (Carl Zeiss Jena GmbH). Furthermore we have a single photon sensitive camera (CASCADE II 512) available for low intensity fluorescence signals and the monitoring of fast processes. Combined with a heating / freezing stage and long distance objectives with high magnification a variety of environmental conditions for in-situ measurements can be applied.

Technical details

Microscope:Axio Imager.A1m,
Carl Zeiss Jena GmbH, Germany
Illumination:Mercury short arc lamp for fluorescence microscopy;
Halogen lamps for light microscopy
Cameras:SPOT Insight, Diagnostic instruments inc., Sterling Heights MI, USA;
CASCADE II 512, Photometrics, Roper Scientific Inc., Tucson AZ, USA
Objectives:5x, 10x Epiplan HD;
20x, 50x, 100x LD-EC Epiplan-Neofluar HD DIC,
Carl Zeiss Jena GmbH, Germany
Software:Meta Series Software 7.1.1,
Molecular Devices, Downingtown PA, USA
Additional:LTS 350 Heating / Freezing Stage
(Software: Linksys 32), Linkam Scientific Instruments Ltd., Tadworth, United Kingdom
